RO Filters

Click to Enlarge

Set Of 10" Pre Filters

Set Of 3 10" Pre Filters

Includes the following

Will fit in 10" filter housings

ECB-5

The Spectrum 10" ECB-5-9 3/4 Carbon Block Filter improves water quality by removing unpleasant tastes, odors, and chemical pollutants, with up to 60% better chlorine removal. Made from acid-washed bituminous carbon, it effectively targets large organic molecules and reduces impurities, while the 5-micron filtration protects R/O membranes from high chlorine levels.

Specifications
Technology: Carbon Block Cartridge
Material: Acid-Washed Bituminous Carbon
Performance: Effective for Chlorine Reduction and Medium Sediment
Micron Rating: 5
Length: 9 3/4"
Diameter: Standard (2.5")
End-Cap: DOE (Double Open End)
Seal: EPDM
Flow Rate: 3.8 litres per minute
10" Chlorine reduction - 6,000 litres @2mg/l

GAC-10

The TS-GAC-10 Pentair Carbon and Phosphate Granular Filter (9 3/4") combines granular activated carbon with phosphate crystals to effectively reduce unwanted tastes, odors, and chlorine from drinking water while also preventing rust stains and scale deposits. Designed for optimal adsorption, water passes through the full length of the carbon bed, ensuring thorough filtration. An internal expansion pad minimizes channeling, and a post-filter reduces carbon fines and suspended particles, secured by a robust support basket to prevent bypass.

Specifications
Technology: Granular Carbon Cartridge
Material: Granular Activated Carbon w/ Phosphate
Performance: Excellent Chlorine - Low Sediment
Micron: 20
Length: 9 3/4"
Diameter: Regular (2.5")
End-Cap: DOE - Double Open Ended
Temperature Rating: 40-125°F (4.4-51.7°C)
Certified by NSF/ANSI Standard 42.

SSP-5

The Spectrum SSP-5-9 TruDepth Standard Spun Cartridge, 5 micron, efficiently removes sediment like dirt, sand, and rust, ensuring cleaner water and improved system performance. WRAS approved for water safety and quality, it's ideal for residential, commercial, and industrial use. Easy to install and maintain, it offers reliable filtration for various applications.

Specifications
Material: Polypropylene
Efficiency (%): 80
Length: 10"
Diameter: Regular (2.5")
End-Cap: DOE - Double Open Ended
Flow Rate (lpm): 15

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

1 - £35.00 ea
(£42.00 including vat and UK delivery)

2 - £28.33 ea
(£34.00 including vat and UK delivery)

3 + £25.83 ea
(£31.00 including vat and UK delivery)

Click to Enlarge

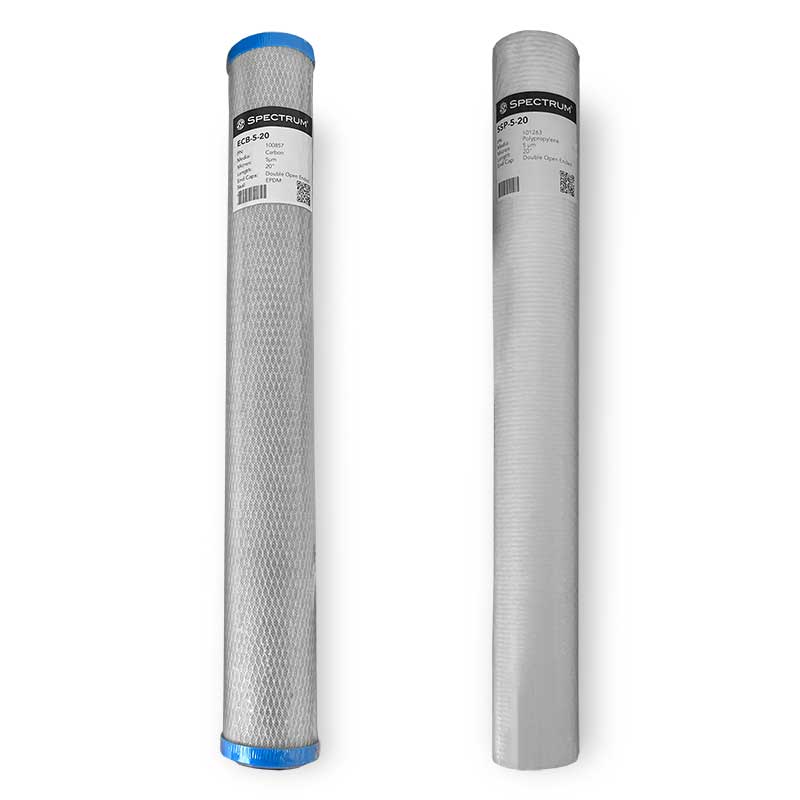

Spectrum ECB Carbon and SSP Sediment Filters

ECB Carbon filter made from Acid Washed Bituminous Carbon. This filter delivers chlorine reduction efficiency levels of 60%.

The Spectrum ECB Carbon Filter is a higher grade filter to the Spectrum CB Carbon Filter.

Used primarily in small R/O Systems to provide protection from chlorine which harms the membrane sheet.

The Spectrum SSP Polypropylene Filter has a higher surface area and enhanced dirt holding capacity over the Spectrum ESP range, which is why we use this filter in our systems.

Not suitable for drinking water.

Made from Polypropylene giving it an 80% efficiency.

Includes the following

1x 10" or 20" Spectrum 5 Micron ECB Carbon Block Filter
1x 10" or 20" Spectrum 5 Micron SSP Sediment Filter
Filters will require 10" or 20" Housings

Please ensure you purchase the correct filter size

SSP Sediment Filter Specifications

Applications & Industries
General incoming water filtration
Pre RO water treatment
Nozzle and pump protection
Food
Beverage
Chemical manufacture

SSP-5-9 Specifications
Length: 9 7/8"
Flow Rate (lpm): 15
Micron Rating: 5

SSP-5-20 Specifications
Length: 20"
Flow Rate (lpm): 30
Micron Rating: 5

ECB Carbon Filter Specifications

Key Features
Delivers chlorine reduction efficiency levels of 60%
Robust, due to high binder content
Typical Applications
Low capacity industrial batch processes
Small RO applications where cost is of primary consideration

ECB-5-9 Specifications
Length: 9 3/4"
Chlorine Removal: @2mg/l - 6,000 litres / @0.2mg/l - 48,500 litres
Flow Rate: 3.8l/m
Micron Rating: 5

ECB-5-20 Specifications
Length: 9 3/4"
Chlorine Removal: @2mg/l - 12,000 litres / @0.2mg/l - 96,000 litres
Flow Rate: 7.6l/m
Micron Rating: 5

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

10" Carbon and Sediment Filters

1 - £19.58 ea
(£23.50 including vat and UK delivery)

2 - £13.33 ea
(£16.00 including vat and UK delivery)

5 - £9.67 ea
(£11.60 including vat and UK delivery)

10 - £8.25 ea
(£9.90 including vat and UK delivery)

15 + £7.76 ea
(£9.31 including vat and UK delivery)

20" Carbon and Sediment Filters

1 - £25.42 ea
(£30.50 including vat and UK delivery)

2 - £18.75 ea
(£22.50 including vat and UK delivery)

5 - £16.17 ea
(£19.40 including vat and UK delivery)

10 - £13.33 ea
(£16.00 including vat and UK delivery)

15 + £11.97 ea
(£14.36 including vat and UK delivery)

Spectrum ECB-5-93/4LD and SSP-5-93/4LD Filters

Click to Enlarge

Spectrum Carbon and Sediment Block Filters 5 Micron

ECB-5-93/4LD and SSP-5-9/34LD

New Product

This WRAS approved filter bundle combines a large diameter carbon block cartridge with a high-capacity spun sediment filter, designed for use with 10" Big Blue (Jumbo) filter housings. Together, they provide effective pre-filtration, improving water quality and protecting downstream systems such as reverse osmosis membranes.

Carbon Block Cartridge (ECB-5-93/4-LD)

Manufactured from acid-washed bituminous carbon, this high-grade carbon block offers improved performance over standard carbon filters, achieving up to 60% chlorine reduction while targeting larger organic compounds such as benzene.

Sediment Filter (SSP-5-93/4-LD)

The TruDepth spun polypropylene design provides a higher surface area for enhanced dirt-holding capacity, efficiently removing sediment and particulates before they reach the carbon stage.
